02.1
Changing at your will

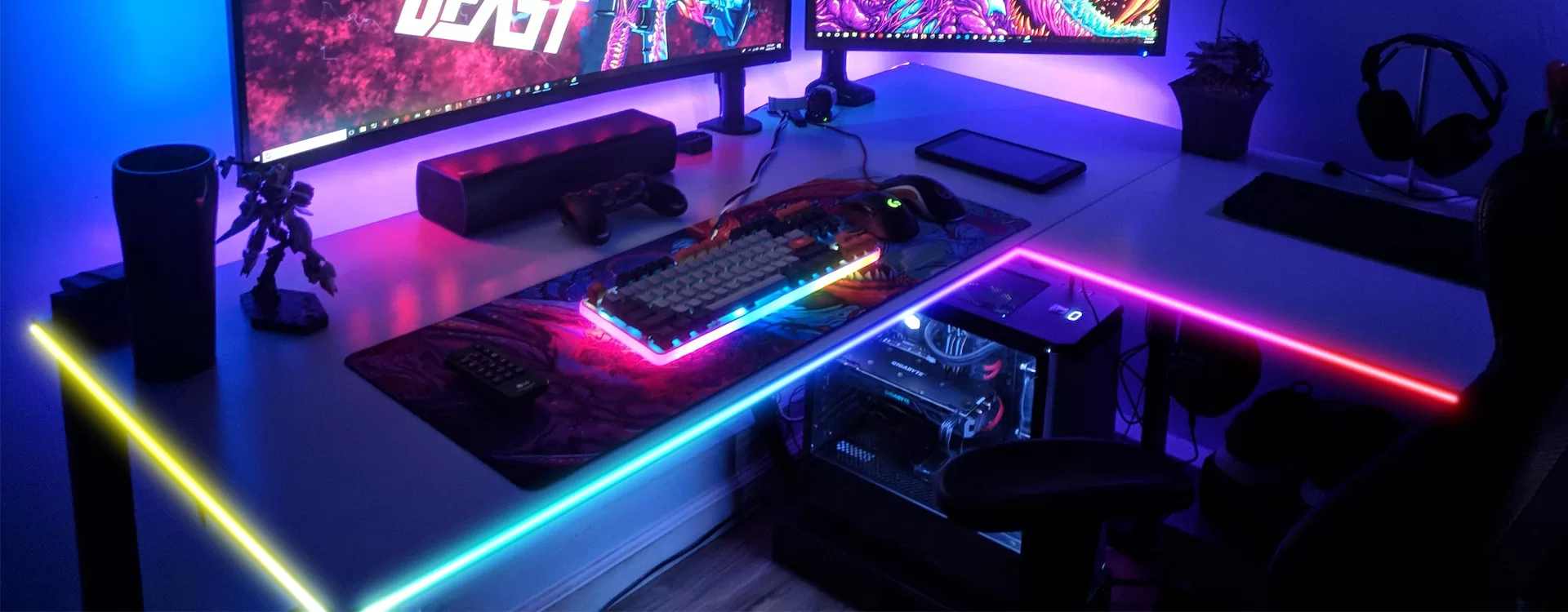

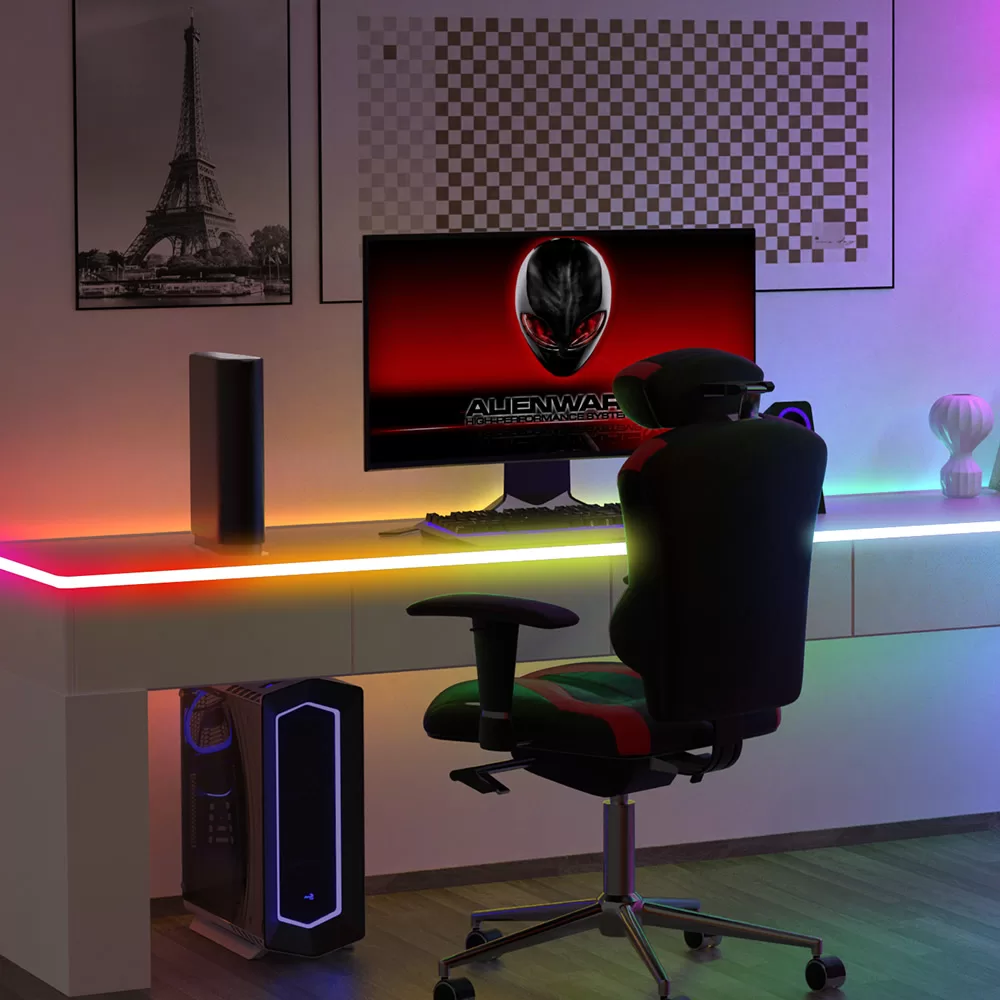

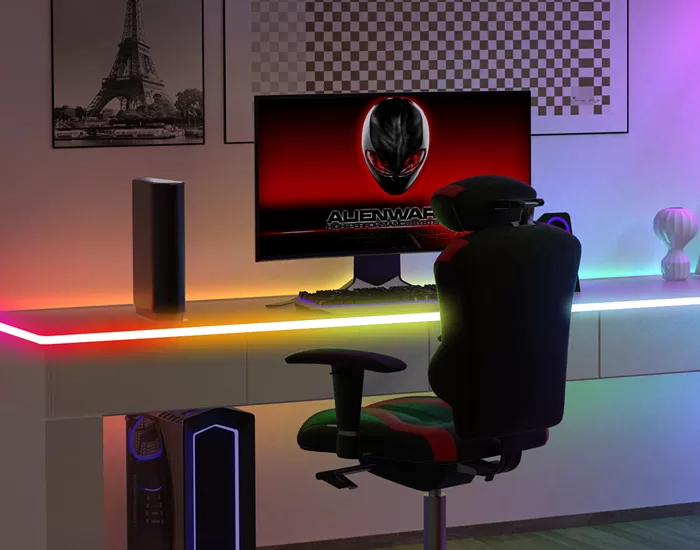

WiFi APP+IR multiple control music sync dream color neon rope light for desks
Create a coolspaceChanging at your will
⚲
LED Strip Kits / COB Series

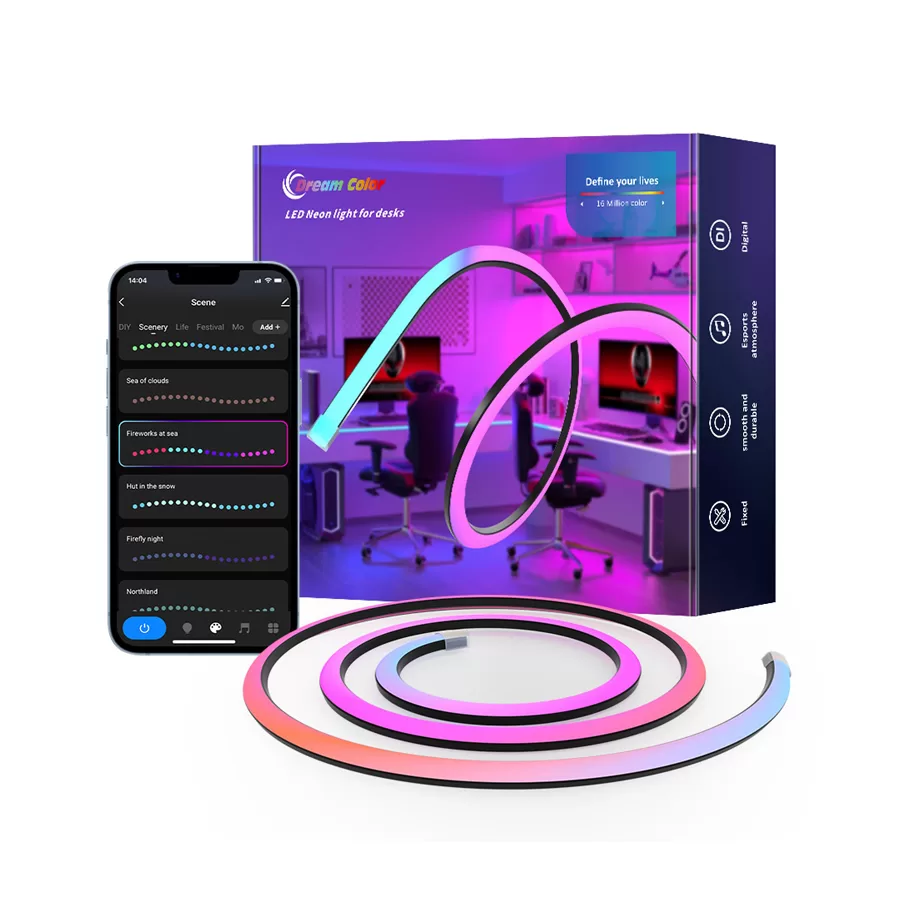

WiFi+IR multiple control dream color LED Neon light for desks
Model ZYD-01-3.2 / ZYD-01-5
LEDs/m
mm PCB
- Integrated silicone, seamless connection Metal aluminum material lamp pole, no deformation Built-in controller, one-touch operation Double IR heads, remote control operation with sensitivity Non-slip base that prevents tipping and installation is simple 3-sided wide-angle light emitting surface, no video flicker 16 million RGB colors, colorful lighting changes WIFI + Bluetooth, controllable via APP Work with Amazon Alexa and Google Assistance Support for music sync, sound and light synchronization, multiple music modes 5V low voltage power supply, low power consumption, safe and energy-saving product
- LED density
- LEDs/m
- Cut length
- IP rating
Samples available 5–7 days
OEM / ODM supported
Direct from factory
Need a custom smart lighting solution?
Tell us your market, application and target quantity. Our team will come back with a practical OEM/ODM proposal, including drawing and sampling schedule.
02 — Technical highlights
What the specification means in practice
Four points that decide whether this product suits your application, each written as feature plus outcome — no campaign slogans.
02.2

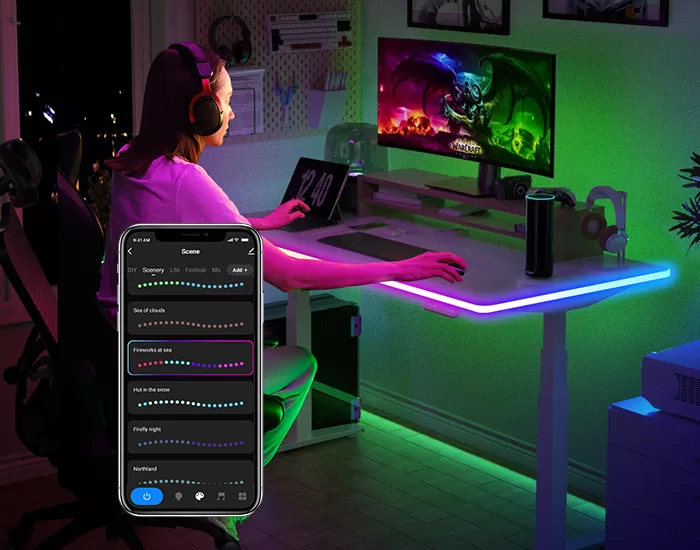

Smart APP control, bluetooth help faster connection and pairing
Synchronization with your gaming scenes
02.3

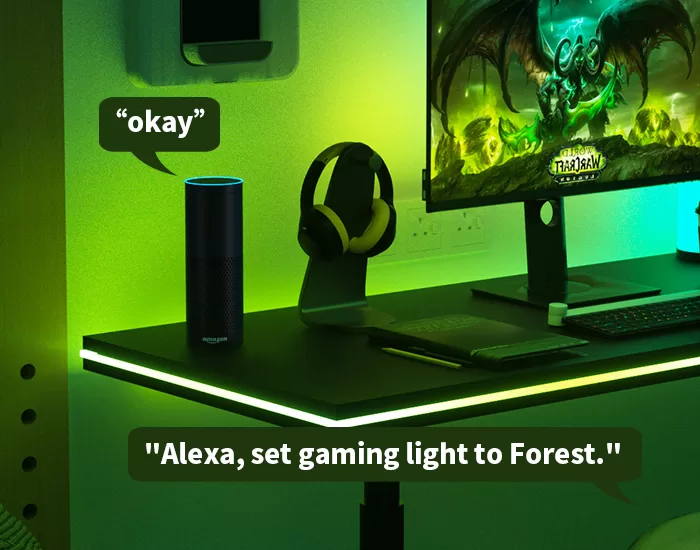

Support Alexa, Hey Google and Xiaodu etc.
Voice controllable at your will
Support Alexa, Hey Google and Xiaodu etc.
Such as music mode,the light will sync with your favorite music.
Voice controllable at your will
02.4

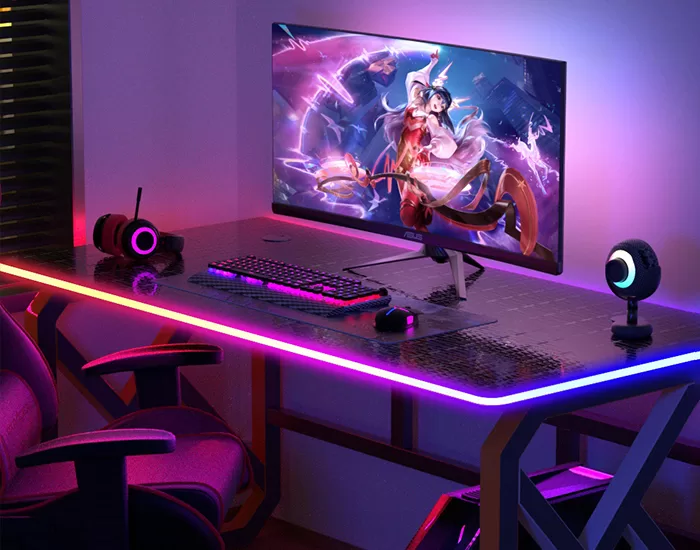

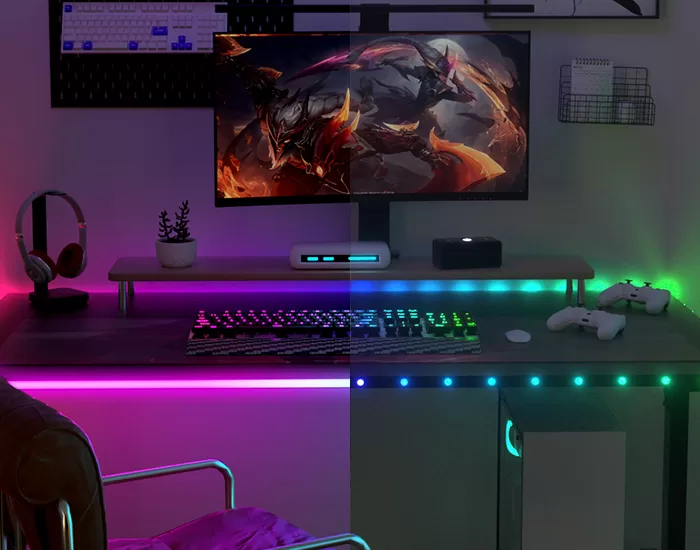

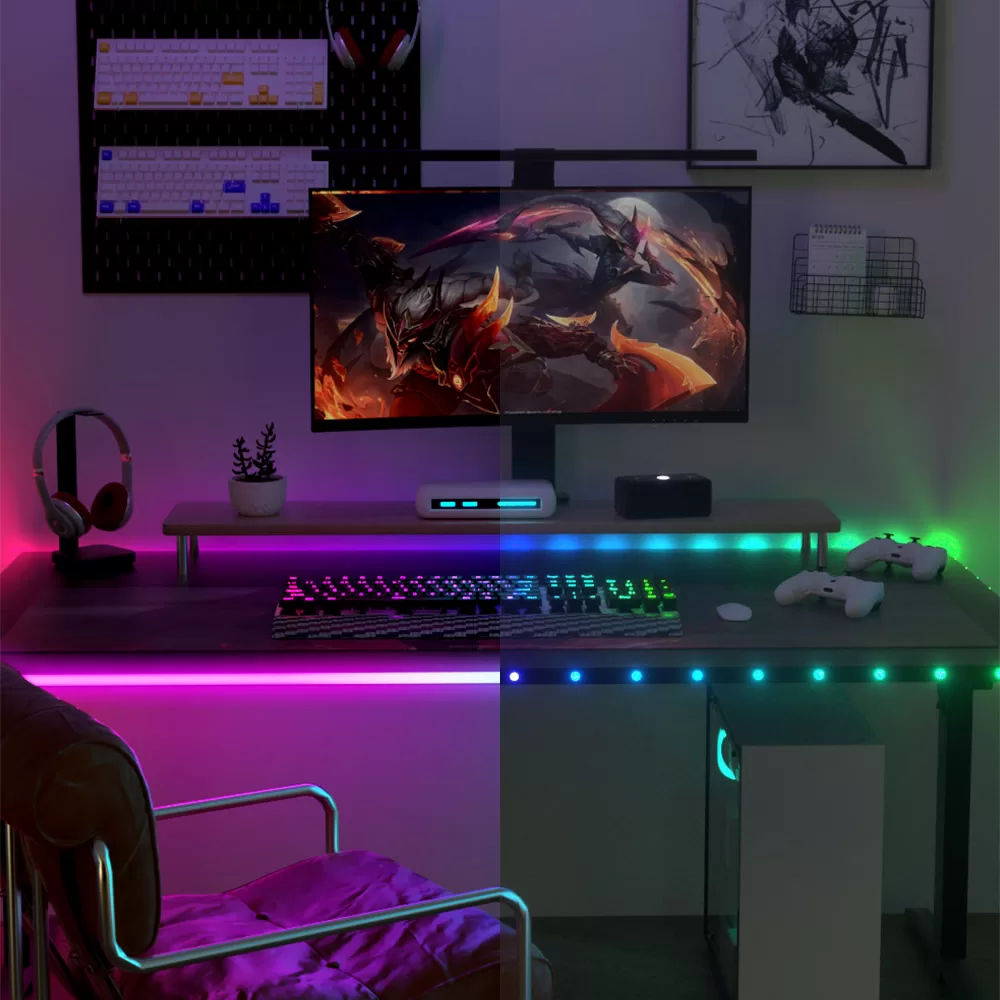

Romantic light, create different atmopheres
Re-define your space by the segment dream color RGB lighting control03 — Applications
Where this model fits
The four applications this configuration is quoted for most often, each with the reason it suits the specification.
Retail display cases
Glass and acrylic cases show every light point; the dot-free COB line keeps merchandise unobstructed.
Home theatre & media rooms
180° beam gives even wall wash behind screens, and app scenes switch the room from viewing to ambient in one tap.
Hotel, restaurant & bar fit-outs
Group control covers multiple zones from one account, and the 50 mm cut interval matches bar and back-counter modules.
OEM lighting programmes
Length, IC, colour and packaging can be adjusted, so the same platform can carry your own brand and SKU set.
04 — Model range
The full series on one page
This platform is offered in several densities and run lengths. The differences that matter at selection stage are listed below.
| Model No. | Working Volt | Dimension | LED light source | Material / technics | Rated power | LED chips qty | Communication protocol | Installation way | |
|---|---|---|---|---|---|---|---|---|---|
| ZYD-01-3.2 | DC 24V | 6mm*12mm*3.2m | RGB dream color | Silicone / dual color extrusion | MAX 24W | 480 LED chips/m | 2.4GHz WiFi + Bluetooth | Adhesive tape |
| Model No. | Working Volt | Dimension | LED light source | Material / technics | Rated power | LED chips qty | Communication protocol | Installation way | |
|---|---|---|---|---|---|---|---|---|---|
| ZYD-01-5 | DC 24V | 6mm*12mm*5m | RGB dream color | Silicone / dual color extrusion | MAX 24W | 480 LED chips/m | 2.4GHz WiFi + Bluetooth | Adhesive tape |
More in the Gaming Lights
Not sure which model to quote?
Send the run length, mounting surface and target viewing distance — we will narrow the series to one or two options and confirm the cut points for your layout.
Send your layout
06 — OEM & ODM
What can be customised
We build this platform under customer brands. The table lists the adjustable items; order size and lead time are the same across the list.
| Customisable item | Available options |
|---|---|
| Run length | 1 m, 5 m, 10 m or custom reel length |
| LED density | 420 / 480 / 528 LEDs per metre |
| IC & protocol | Tuya Wi-Fi + BLE, RF433, Zigbee, DMX512 |
| Colour configuration | RGB, RGB + CCT, single colour |

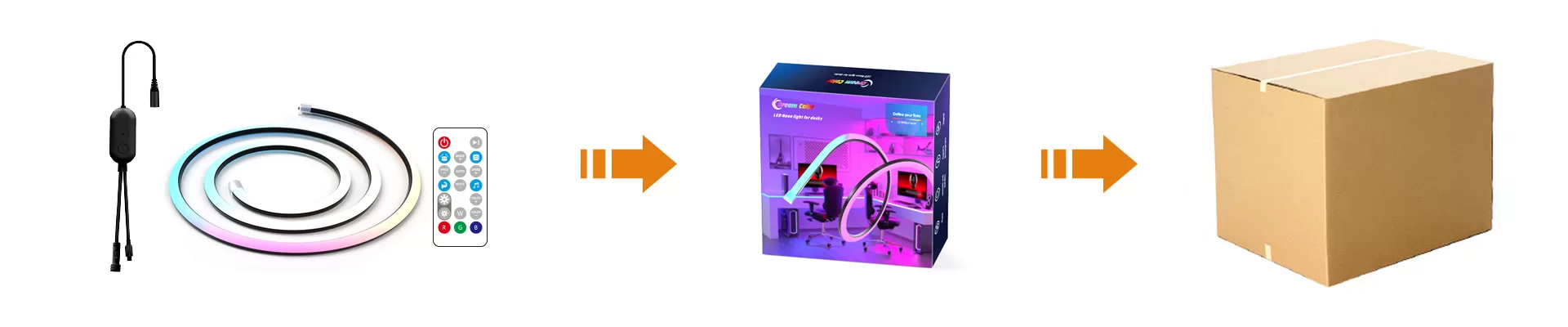

| Packaging | Colour box, blister, poly bag, printed manual, barcode and carton marks |
| Branding | Logo print on box, sticker, silkscreen on strip, app white-label |
| Certification | CE / RoHS standard; UL, ETL, DLC, FCC, ENERGY STAR on request |
Run length, density, colour and IC changes start at 500 sets with a 20–25 day lead time (IC changes 25–30 days). Packaging and branding start at 1,000 pcs, adding 7 days for artwork. Certification scope is quoted per project .
Certification
CERoHSREACH
UL / ETL / FCC — selected models
DLC / ENERGY STAR — on request
Certificate numbers are published on our certification page. Ask us for the test report for your target market and we will send the matching file.
Warranty
3 years standard on strip and controller; 5-year extended option for project and tender orders .
Covers defect replacement of strip, controller and driver. Excludes damage from incorrect voltage, cutting outside the marks, or outdoor use of an IP20 product.
08 — Ordering & delivery
Order size, lead time and packing data
Enough detail to assess whether an order is workable before contacting us, including the carton and weight figures used for freight quotes.
| MOQ — stock configuration | 500 sets |
| MOQ — OEM configuration | 1,000 pcs |
| Sample lead time | 5–7 days |
| Production lead time | 20–25 days after deposit and artwork approval |
Company-wide terms (identical for every SKU): monthly capacity 200,000 m of strip · EXW / FOB Shenzhen / CIF on request · 30% deposit, balance against B/L copy .
Need samples before committing to a volume order?
Send your application and target quantity — sample kits ship in 5–7 days .
Request samples
09 — Downloads
Engineering documents
The files an engineering or procurement team normally requests before specifying this model.
- PDF Product datasheet Full specification, photometric and electrical data Download
- PDF / DWG Dimension drawing Strip section, cut-mark positions and mounting footprint Not uploaded
- PDF Packaging specification Box artwork dimensions, carton marks and pallet loading Not uploaded
- PDF Company catalogue Full CL Lighting product range Download
Installation and app manuals for the full range are in the download library.
10 — FAQ
Engineering questions we answer most often
Written for specifiers rather than consumers: run length, power, cutting and ingress protection.
What is the maximum run length on a single power feed?
A 24 V constant-voltage strip is limited by voltage drop rather than by the LEDs. Keep one feed under 10 m and supply longer installations from both ends or from separate drivers. Send us the run length and we will confirm the driver rating and the number of feeds on the drawing .
Does the kit need an external power supply, and is it included?
The strip runs on DC 24 V, so a supply is always required. Kits are quoted with the matching driver for the run length; for project orders we can ship without one if you prefer to source your own .
Can the strip be cut, and re-joined after cutting?
Yes — cut marks sit every 50 mm. Sections can be re-joined with solder joints or clip connectors, but each section needs its own power feed once the copper trace is broken.
Is this strip suitable for outdoor, bathroom or wet areas?
This model is IP20 for indoor, dry locations. For bathrooms, outdoor facades or other wet areas we quote an IP65 or IP67 version of the same platform — send the application and ingress requirement and we will match a model.
