LED Strip Kits / CL Lighting

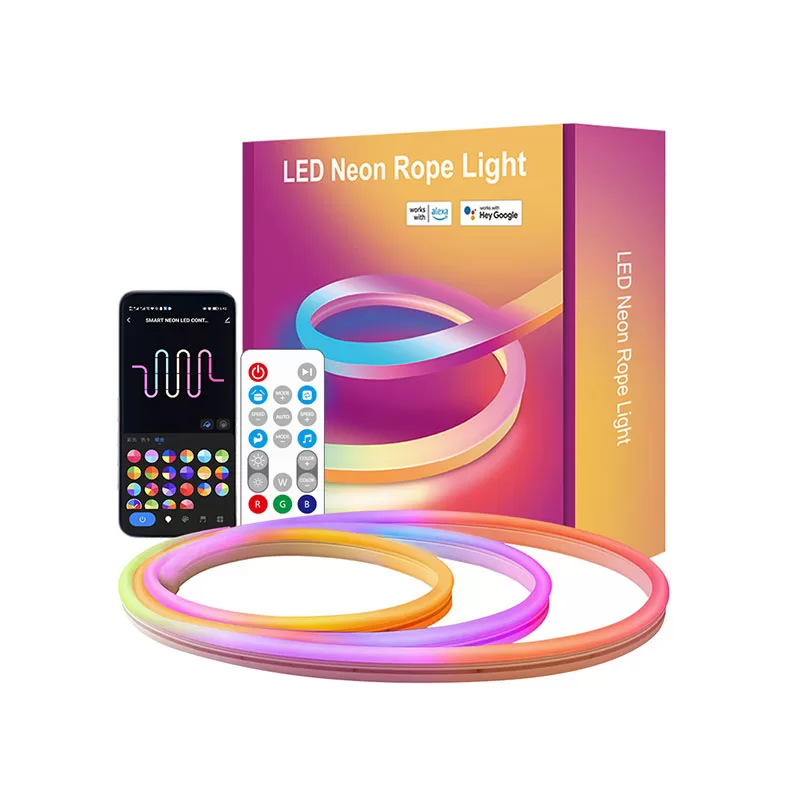

WiFi+BLE+IR Dream Color Music LED Neon Light Kit(PVC)
Model NHWSC6-33T5
DC 24V
71.2*32*13. 5mm
36W

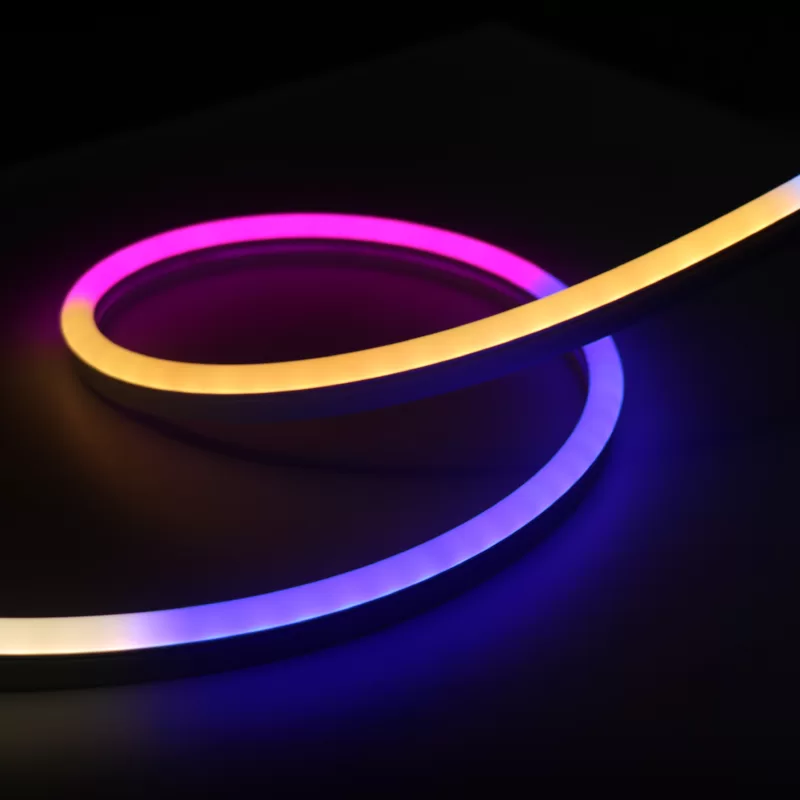

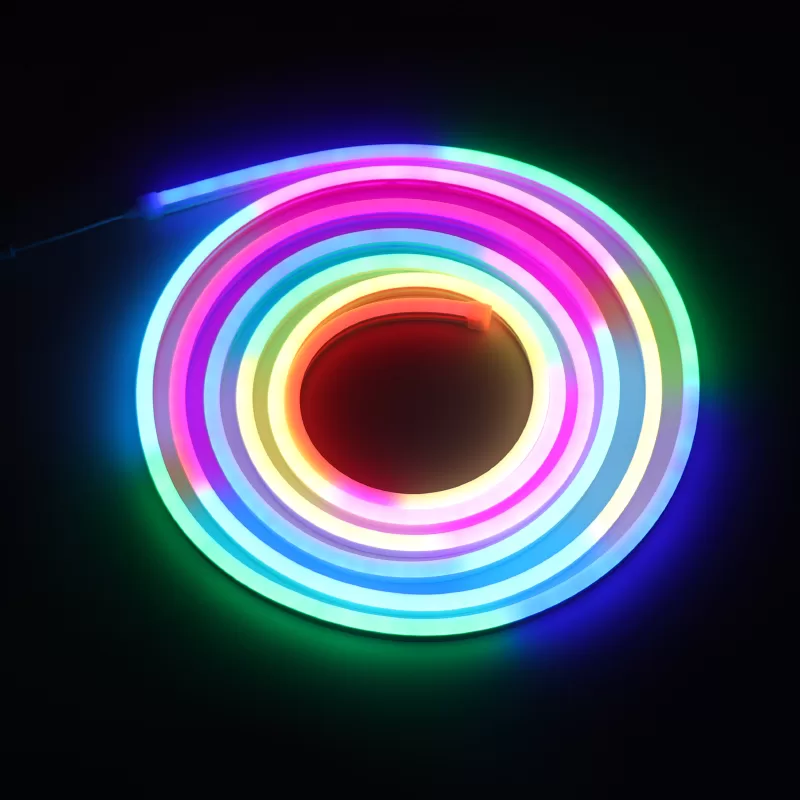

- 5 m PVC neon tube (8 × 17 mm) at 72 LEDs/m with a choice of backlit or side-light emission
- IP67 tube and a −20 °C to 40 °C range keep the run stable outdoors and in bathrooms
- Three ways to control: wall switch button, Bluetooth app and IR remote — no single point of failure
- RGB 16-million-colour output with dream-colour and music effects for parties and retail displays
- Mounts with clips and screws on a 24 V / 36 W kit, so installation needs no special tooling
- Working vol.
- DC 24V
- Dimension of controller
- 71.2*32*13. 5mm
- Rated power
- 36W
Samples available 5–7 days
OEM / ODM supported
Direct from factory
Need a custom smart lighting solution?
Tell us your market, application and target quantity. Our team will come back with a practical OEM/ODM proposal, including drawing and sampling schedule.
02 — Specifications
Parameters at a glance
The table below lists the buying-critical values only. Units follow one convention throughout (V, W, mm, LEDs/m) so the sheet can be quoted directly.
| Dimension of controller | 71.2*32*13. 5mm |
| Color | RGB 16 million colors, dream color lighting |
| Dimension of neon light | 8*17*5000mm |
| Light guide direction | backlit or side light |
| Material | ABS for controller, PVC for Neon tube |
| Installation method | Mounting clips+screws |
| Working vol. | DC 24V |
| Control way | Switch button+Bluetooth APP+IR remote |
| Rated power | 36W |
| Protection grade | IP67 |
| LED type | 72 LEDs/m |
| Working temp. | -20°℃~40℃ |
02 — Technical highlights
What the specification means in practice
Four points that decide whether this product suits your application, each written as feature plus outcome — no campaign slogans.
02.2

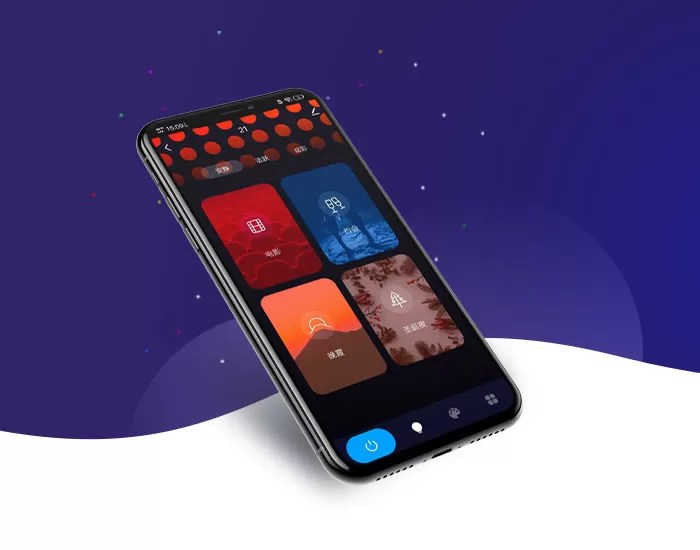

APP operation function diversification WIFI+BLE control protocol
Support Android and Apple system timing, color adjustment, group control,
account sharing, remote control after connecting to the network
02.3

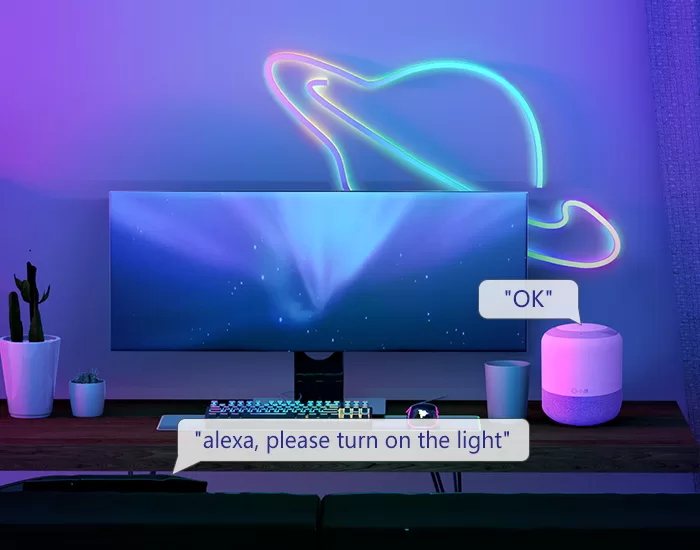

Smart voice control
Third-party smart speakers that support voice control: Amazon Echo,Google Assistant,such as music mode, your lights will be synced to your audio
02.4

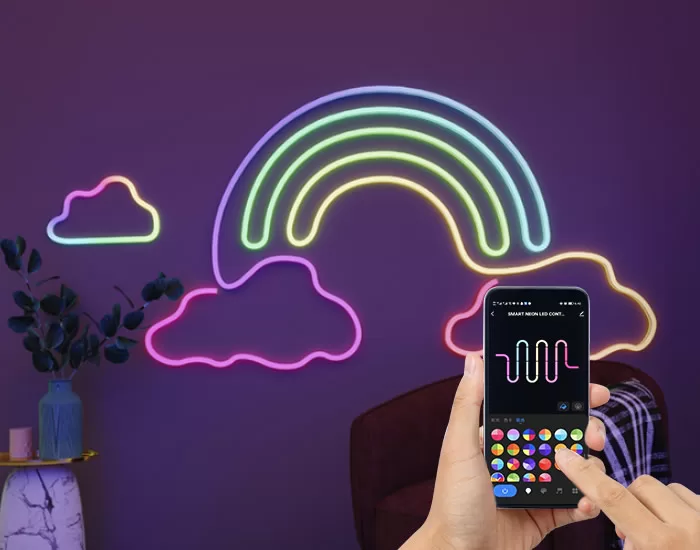

APP control fingertip touch
More exciting functions, such as timer switch,brightness adjustment,color temperature adjustment,one-key scene,group control,account sharing, etc.
03 — Applications
Where this model fits
The four applications this configuration is quoted for most often, each with the reason it suits the specification.

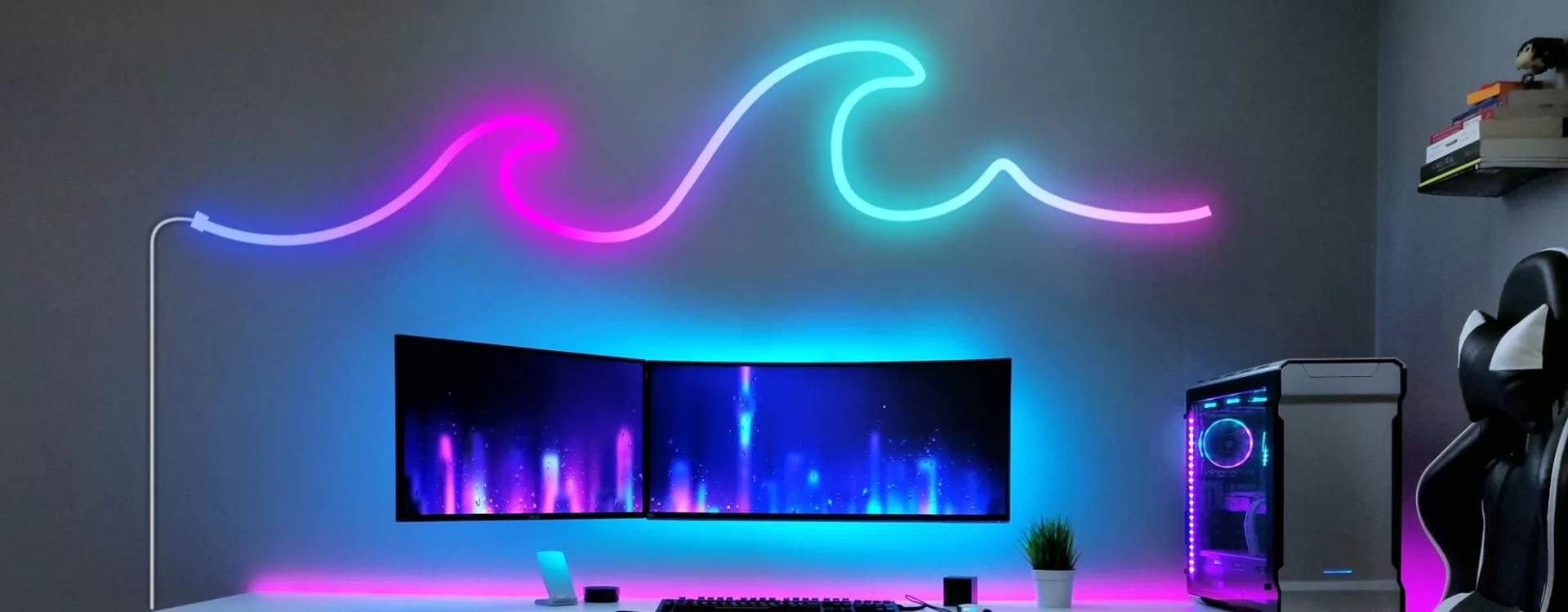

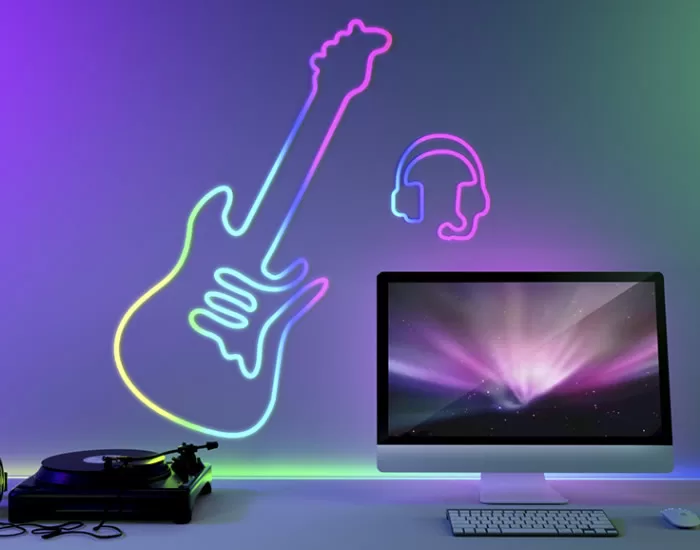

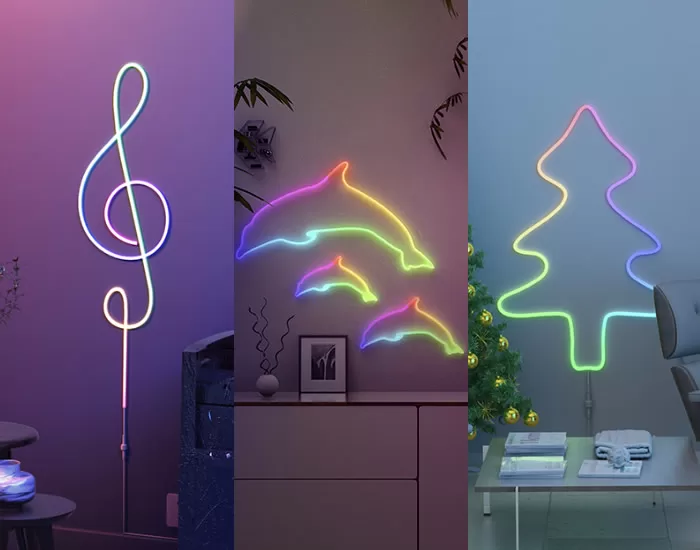

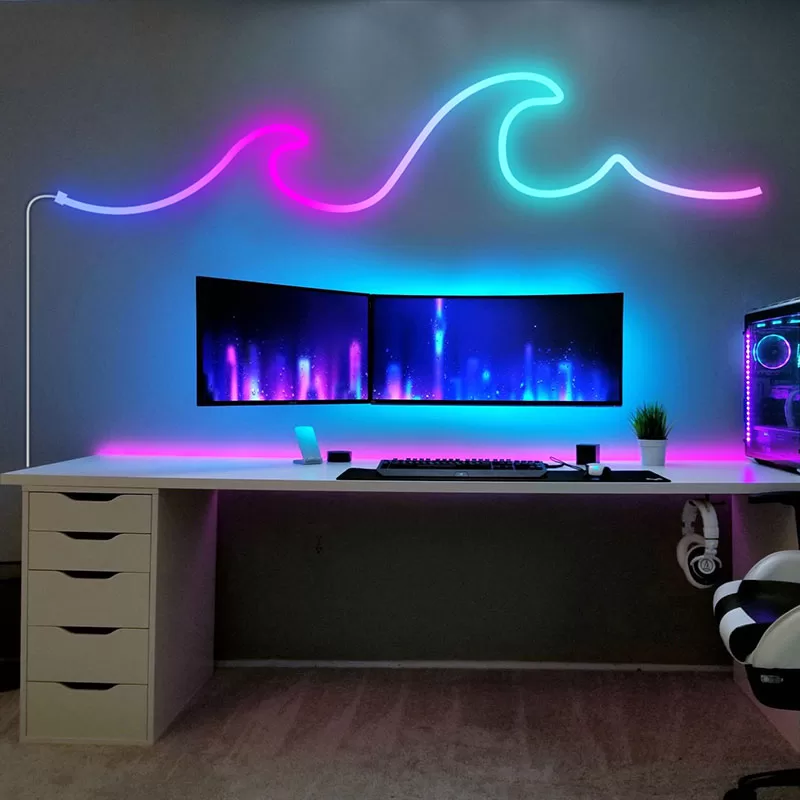

Home & living spaces
Ambient lighting for living rooms, bedrooms and media walls, where colour scenes and app control decide the purchase.
Retail, display & showroom
Shelf, window and perimeter accents that can be re-coloured per campaign without replacing the fixture.
Hospitality & events
Hotels, bars and venues specify the range for decoration that installs quickly and is grouped by zone from one account.
OEM lighting programmes
Length, control method, colour configuration and packaging can be adjusted, so one supply base covers your whole SKU range.
04 — Model range
Other models in this family
This product belongs to a wider family of related models. The closest alternatives in the same category are listed below, so you can compare like for like before quoting.
More in the LED Strip Kits
- Outdoor Permanent Light — 24 V RF433, Dream Color
- RGBIC + CCT LED Strip Kit (dual IC)
- Festoon Lighting Kit — WiFi+RF, RGBIC+W, 15 m
- Dream Color String Downlight — 12 V WiFi+IR
- Permanent Outdoor String Lights Kit — WiFi+RF433, 15 m
- Outdoor String Bulb Light — WiFi+BLE+RF433, RGBIC+W
- Neon Light Kit — WiFi+BT+IR, RGBIC, IP67
- 5 V Bluetooth Strip Kit — IR remote, 5–20 m
- RGBIC Illusion Strip Kit — WiFi+BLE+IR, Music
- Music LED Strip Light Set — WiFi+BLE+IR, 5 m
- USB Bluetooth Music Strip Kit — 5 V, 2 m
- RGBIC+CCT Dual Mode Strip Kit — IR Music
Not sure which model to quote?
Send your application, destination market and estimated quantity — we will narrow the range to one or two options and come back with a quotable configuration.
Send your requirement
06 — OEM & ODM
What can be customised
We build this platform under customer brands. The table lists the adjustable items; order size and lead time are the same across the list.
| Customisable item | Available options |
|---|---|
| Run length | 1 m, 5 m, 10 m or custom reel length |
| LED density | 420 / 480 / 528 LEDs per metre |
| IC & protocol | Tuya Wi-Fi + BLE, RF433, Zigbee, DMX512 |
| Colour configuration | RGB, RGB + CCT, single colour |

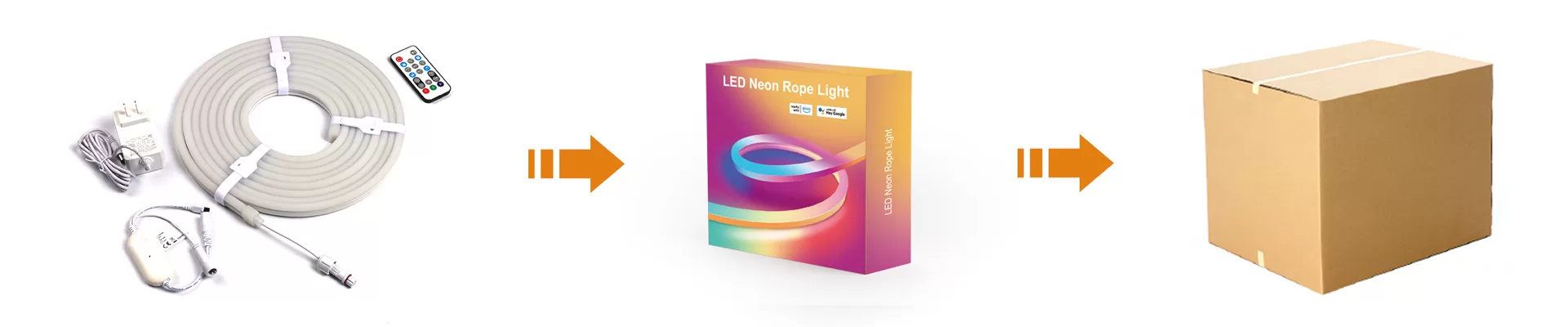

| Packaging | Colour box, blister, poly bag, printed manual, barcode and carton marks |
| Branding | Logo print on box, sticker, silkscreen on strip, app white-label |
| Certification | CE / RoHS standard; UL, ETL, DLC, FCC, ENERGY STAR on request |
Run length, density, colour and IC changes start at 500 sets with a 20–25 day lead time (IC changes 25–30 days). Packaging and branding start at 1,000 pcs, adding 7 days for artwork. Certification scope is quoted per project .
Certification
CERoHSREACH
UL / ETL / FCC — selected models
DLC / ENERGY STAR — on request
Certificate numbers are published on our certification page. Ask us for the test report for your target market and we will send the matching file.
Warranty
3 years standard on strip and controller; 5-year extended option for project and tender orders .
Covers defect replacement of strip, controller and driver. Excludes damage from incorrect voltage, cutting outside the marks, or outdoor use of an IP20 product.
08 — Ordering & delivery
Order size, lead time and packing data
Enough detail to assess whether an order is workable before contacting us, including the carton and weight figures used for freight quotes.
| MOQ — stock configuration | 500 sets |
| MOQ — OEM configuration | 1,000 pcs |
| Sample lead time | 5–7 days |
| Production lead time | 20–25 days after deposit and artwork approval |
Company-wide terms (identical for every SKU): monthly capacity 200,000 m of strip · EXW / FOB Shenzhen / CIF on request · 30% deposit, balance against B/L copy .
Need samples before committing to a volume order?
Send your application and target quantity — sample kits ship in 5–7 days .
Request samples
09 — Downloads
Engineering documents
The files an engineering or procurement team normally requests before specifying this model.
- PDF Product datasheet Full specification, photometric and electrical data — NHWSC6-33T5 Download
- PDF / DWG Dimension drawing Strip section, cut-mark positions and mounting footprint Not uploaded
- PDF Packaging specification Box artwork dimensions, carton marks and pallet loading Not uploaded
- PDF Company catalogue Full CL Lighting product range Download
Installation and app manuals for the full range are in the download library.
10 — FAQ
Questions buyers ask before ordering
Samples, order size, branding and after-sales — the four points that decide whether an order moves forward.
Can I get a sample before committing to a volume order?
Yes. Sample units ship in 5–7 days for stock configurations . Tell us the model, the control method and the destination market, and we will confirm what the sample includes and how it is shipped.
What is the minimum order quantity, and what can be customised?
Stock configurations start at 500 sets; OEM orders start at 1,000 pcs. Customisation covers length, control method, colour configuration, packaging and branding. Send the build you need and we will confirm MOQ and lead time for that exact configuration .
Can the product carry our own brand and packaging?
Yes — logo print on the box, stickers, silkscreen on the product and app white-labelling are all available. Artwork is approved before production, and the artwork stage adds about 7 days to the lead time.
What is the warranty, and how are defects handled?
3 years standard on the light source and controller, with a 5-year extended option for project and tender orders . If a unit fails, send the batch code, the quantity affected and photos, and our after-sales team will confirm the replacement plan.
