High-Efficiency SMD Strip Series
High-Efficiency SMD LED Strip 180LED/m 24V
Model
24V
180 LEDs/m
8 mm PCB

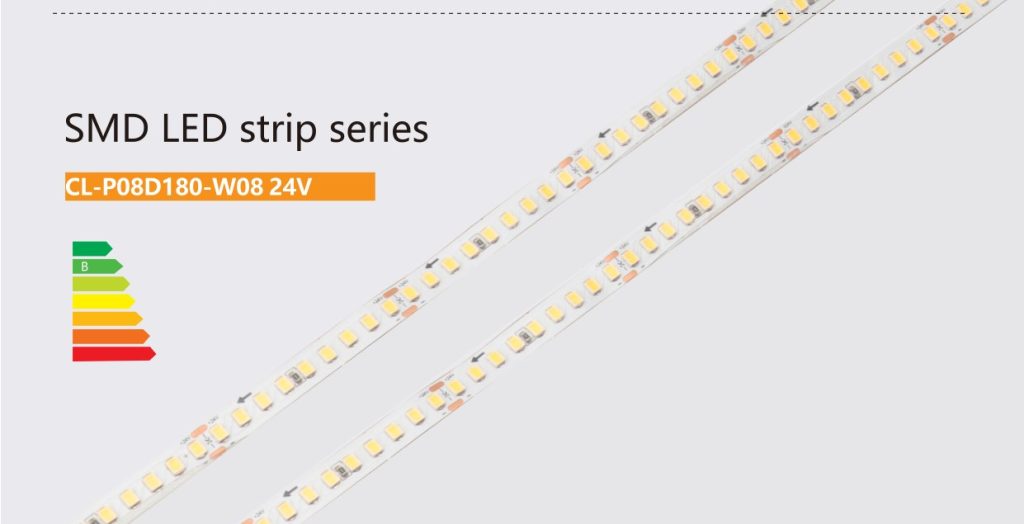

- 200 LM/W efficacy: 8 W/m replaces a 15 W standard strip with the same output
- 180 LEDs/m on an 8 mm PCB - dot-free behind diffusers, fits slim channels
- 3 CCT options (3000 K / 4000 K / 6000 K), CRI above 80, 120 degree beam
- 50 mm cut intervals, 5 m reel, 24 V, IP20, CE / UKCA / ErP
- LED density
- 180 LEDs/m
- Cut length
- 50mm
- IP rating
- IP20
Samples available 5–7 days
OEM / ODM supported
Direct from factory
Need a custom smart lighting solution?
Tell us your market, application and target quantity. Our team will come back with a practical OEM/ODM proposal, including drawing and sampling schedule.
02 — Technical highlights
What the specification means in practice
Four points that decide whether this product suits your application, each written as feature plus outcome — no campaign slogans.
02.2

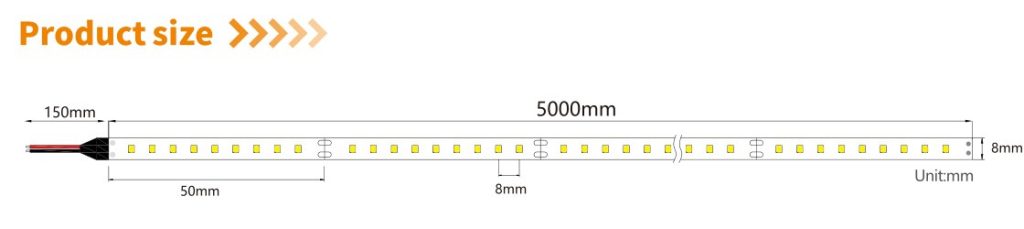

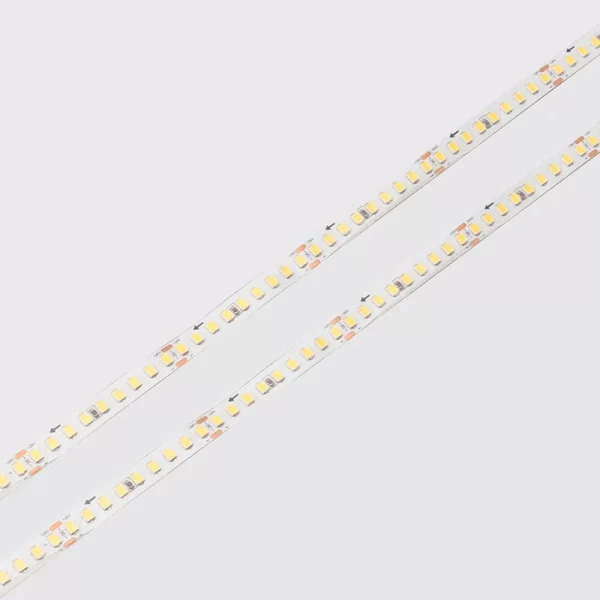

180 LEDs per metre on an 8 mm PCB
The high-density 180 LED layout removes LED spotting behind diffusers, while the 8 mm board slides into slim aluminium channels. Cut marks every 50 mm let you size each run precisely, and 3000 K, 4000 K and 6000 K versions share the same housing so you can switch colour temperature without redesign.
02.3

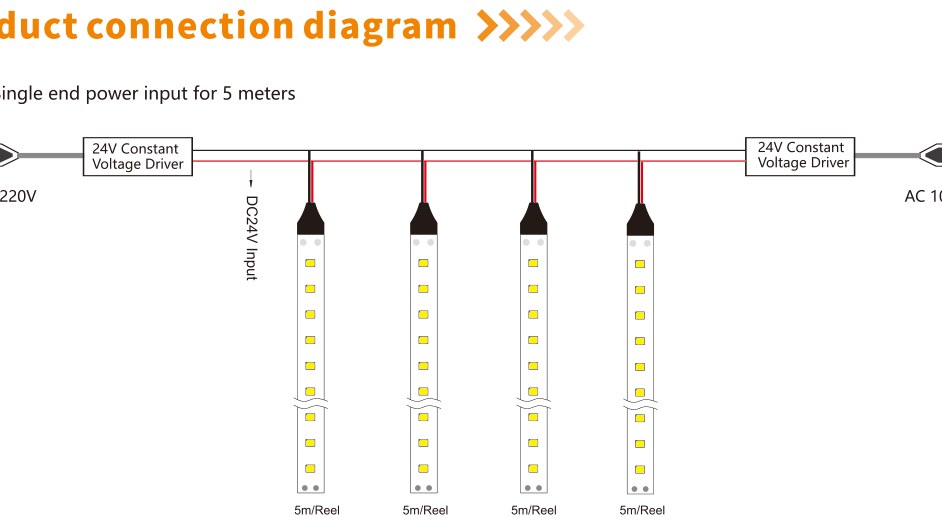

Single-end 24 V feed – one power point per 5 m run
Each 5 m reel is fed from one end through a 24 V constant-voltage driver, so cove and shelf runs need only a single feed point. Size the driver at roughly 1.25 times the strip load and the system stays comfortably inside its thermal limits.
02.4

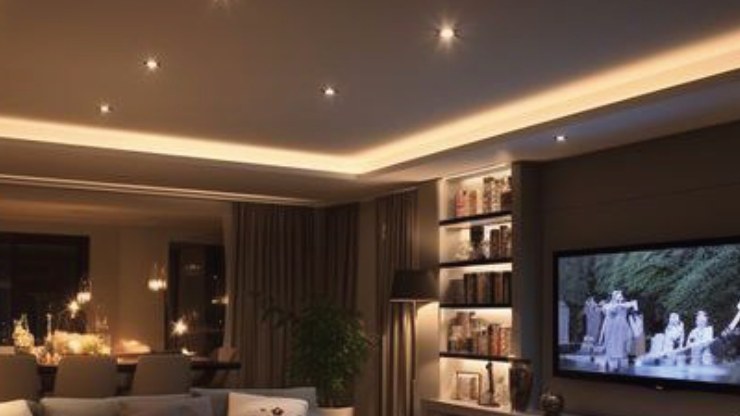

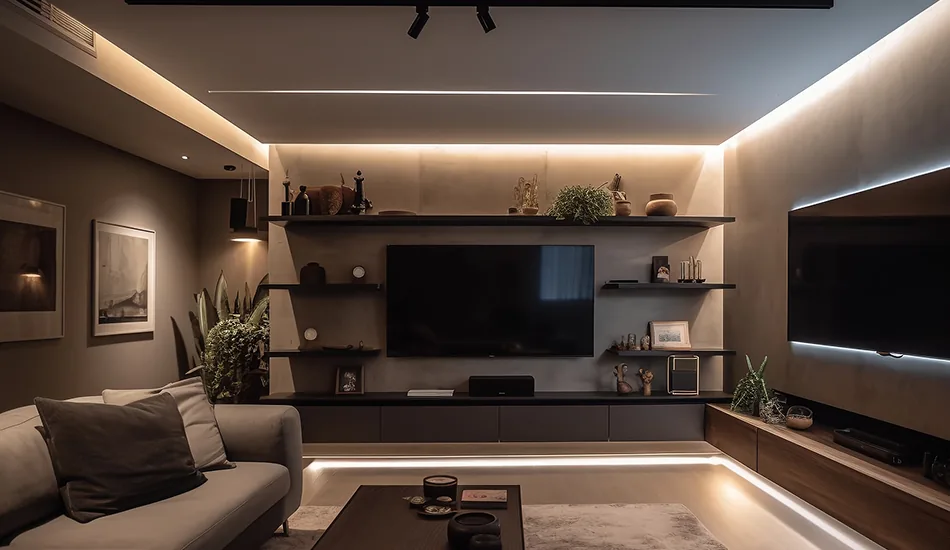

Proven in finished interiors

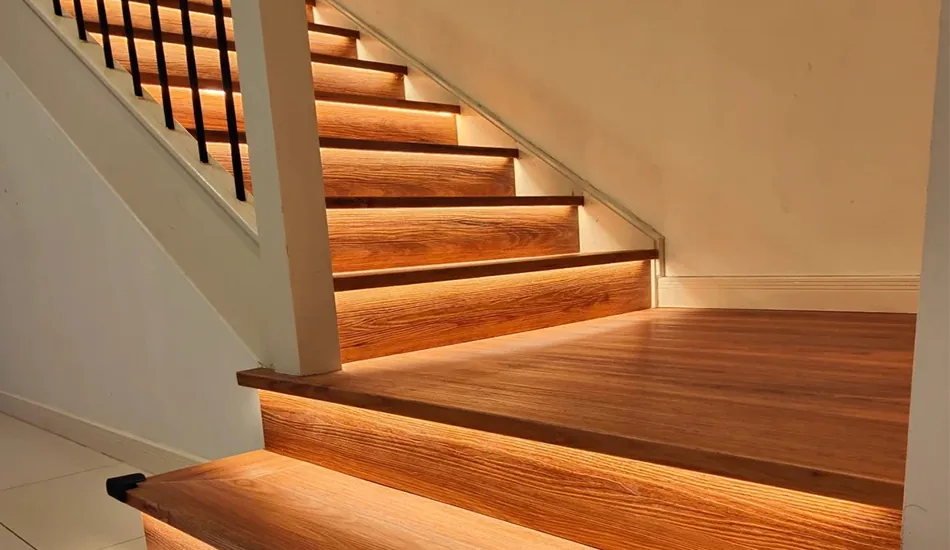

From staircase accents to cove-lit living rooms, the series is specified in residential and hospitality projects where clean, continuous lines of light matter. The same 8 mm platform adapts to wood, gypsum and aluminium detailing.03 — Applications
Where this model fits
The four applications this configuration is quoted for most often, each with the reason it suits the specification.
Coves & ceiling details
The 8 mm PCB slides into slim aluminium channels and tight coves, and up to 200 LM/W means fewer watts for the same glow.
Shelves & display cases
High LED density spreads light evenly across glass and acrylic shelves, and CRI of 80 or higher keeps merchandise colours true.
Furniture & joinery lighting
Cut intervals of 50–125 mm line up with standard cabinet and shelf modules, and the 24 V feed stays cool inside enclosed furniture.
OEM lighting programmes
CCT, LED density, PCB width and waterproofing are configurable, so one SMD platform covers both fixed-white and tunable-white SKUs.
04 — Model range
The full series on one page
This platform is offered in several densities and run lengths. The differences that matter at selection stage are listed below.
| Item NO | input voltage | CCT | CRI | Luminous flux | power(W/M) | leds/m | cut length | PCB width（mm) | IP rate |
|---|---|---|---|---|---|---|---|---|---|
| CL-P08D180-W08 24V | 24V | 3000K±150K | ≥80 | 200LM/W | 8 | 180 | 50mm | 8 | IP20 |
| CL-P08D180-W08 24V | 24V | 4000K±200K | ≥80 | 200LM/W | 8 | 180 | 50mm | 8 | IP20 |
| CL-P08D180-W08 24V | 24V | 6000K±250K | ≥80 | 200LM/W | 8 | 180 | 50mm | 8 | IP20 |
More in the SMD Strip
Not sure which model to quote?
Send the run length, mounting surface and target viewing distance — we will narrow the series to one or two options and confirm the cut points for your layout.
Send your layout
06 — OEM & ODM
What can be customised
We build this platform under customer brands. The table lists the adjustable items; order size and lead time are the same across the list.
| Customisable item | Available options |
|---|---|
| Run length | 1 m, 5 m, 10 m or custom reel length |
| LED density | 420 / 480 / 528 LEDs per metre |
| IC & protocol | Tuya Wi-Fi + BLE, RF433, Zigbee, DMX512 |
| Colour configuration | RGB, RGB + CCT, single colour |
| Packaging | Colour box, blister, poly bag, printed manual, barcode and carton marks |
| Branding | Logo print on box, sticker, silkscreen on strip, app white-label |
| Certification | CE / RoHS standard; UL, ETL, DLC, FCC, ENERGY STAR on request |
Run length, density, colour and IC changes start at 500 sets with a 20–25 day lead time (IC changes 25–30 days). Packaging and branding start at 1,000 pcs, adding 7 days for artwork. Certification scope is quoted per project .
Certification
CERoHSREACH
UL / ETL / FCC — selected models
DLC / ENERGY STAR — on request
Certificate numbers are published on our certification page. Ask us for the test report for your target market and we will send the matching file.
Warranty
3 years standard on strip and controller; 5-year extended option for project and tender orders .
Covers defect replacement of strip, controller and driver. Excludes damage from incorrect voltage, cutting outside the marks, or outdoor use of an IP20 product.
08 — Ordering & delivery
Order size, lead time and packing data
Enough detail to assess whether an order is workable before contacting us, including the carton and weight figures used for freight quotes.
| MOQ — stock configuration | 500 sets |
| MOQ — OEM configuration | 1,000 pcs |
| Sample lead time | 5–7 days |
| Production lead time | 20–25 days after deposit and artwork approval |
Company-wide terms (identical for every SKU): monthly capacity 200,000 m of strip · EXW / FOB Shenzhen / CIF on request · 30% deposit, balance against B/L copy .
Need samples before committing to a volume order?
Send your application and target quantity — sample kits ship in 5–7 days .
Request samples
09 — Downloads
Engineering documents
The files an engineering or procurement team normally requests before specifying this model.
- PDF Product datasheet Full specification, photometric and electrical data Download
- PDF / DWG Dimension drawing Strip section, cut-mark positions and mounting footprint Not uploaded
- PDF Packaging specification Box artwork dimensions, carton marks and pallet loading Not uploaded
- PDF Company catalogue Full CL Lighting product range Download
Installation and app manuals for the full range are in the download library.
10 — FAQ
Engineering questions we answer most often
Written for specifiers rather than consumers: run length, power, cutting and ingress protection.
What is the maximum run length on a single power feed?
A 24 V constant-voltage strip is limited by voltage drop rather than by the LEDs. Keep one feed under 10 m and supply longer installations from both ends or from separate drivers. Send us the run length and we will confirm the driver rating and the number of feeds on the drawing .
Does the kit need an external power supply, and is it included?
The strip runs on DC 24 V, so a supply is always required. Kits are quoted with the matching driver for the run length; for project orders we can ship without one if you prefer to source your own .
Can the strip be cut, and re-joined after cutting?
Yes — cut marks sit every 50 mm. Sections can be re-joined with solder joints or clip connectors, but each section needs its own power feed once the copper trace is broken.
Is this strip suitable for outdoor, bathroom or wet areas?
This model is IP20 for indoor, dry locations. For bathrooms, outdoor facades or other wet areas we quote an IP65 or IP67 version of the same platform — send the application and ingress requirement and we will match a model.
