02.1
⚲
LED Strip Kits / COB Series
COB Smart LED Strip Kit
Model COWPC6-33T5
DC 24V
APP+IR
RGB

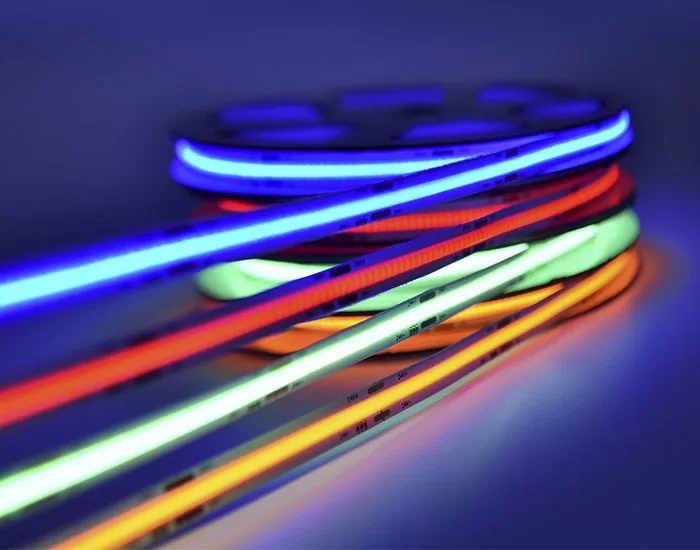

- 420 LEDs/m COB array emits a continuous, dot-free RGB light line with a wide 180° beam — no visible LED dots close up
- Two ways to control: Tuya / Smart Life app for scenes and schedules, plus a physical IR remote for everyday switching
- Complete 5 m kit running on 24 V and up to 40 W, ready to install in display cases, media rooms and ambient projects
- Cuttable every 50 mm so runs can be trimmed on site to fit exact cabinet and shelf lengths
- Working vol
- DC 24V
- Control way
- APP+IR
- Color
- RGB
Samples available 5–7 days
OEM / ODM supported
Direct from factory
Need a custom smart lighting solution?
Tell us your market, application and target quantity. Our team will come back with a practical OEM/ODM proposal, including drawing and sampling schedule.
02 — Specifications
Parameters at a glance
The table below lists the buying-critical values only. Units follow one convention throughout (V, W, mm, LEDs/m) so the sheet can be quoted directly.
| Model No | COWPC6-33t5 |
| CCT | Support RGB+160,000 color adjustment |
| Working vol | DC 24V |
| Power | MAX.40W |
| Color | RGB |
| LEDs qty | 420LEDS/M |
| Control way | APP+IR |
| Min. Cut length | 50MM |
02 — Technical highlights
What the specification means in practice
Four points that decide whether this product suits your application, each written as feature plus outcome — no campaign slogans.
02.2
A variety of effects to show

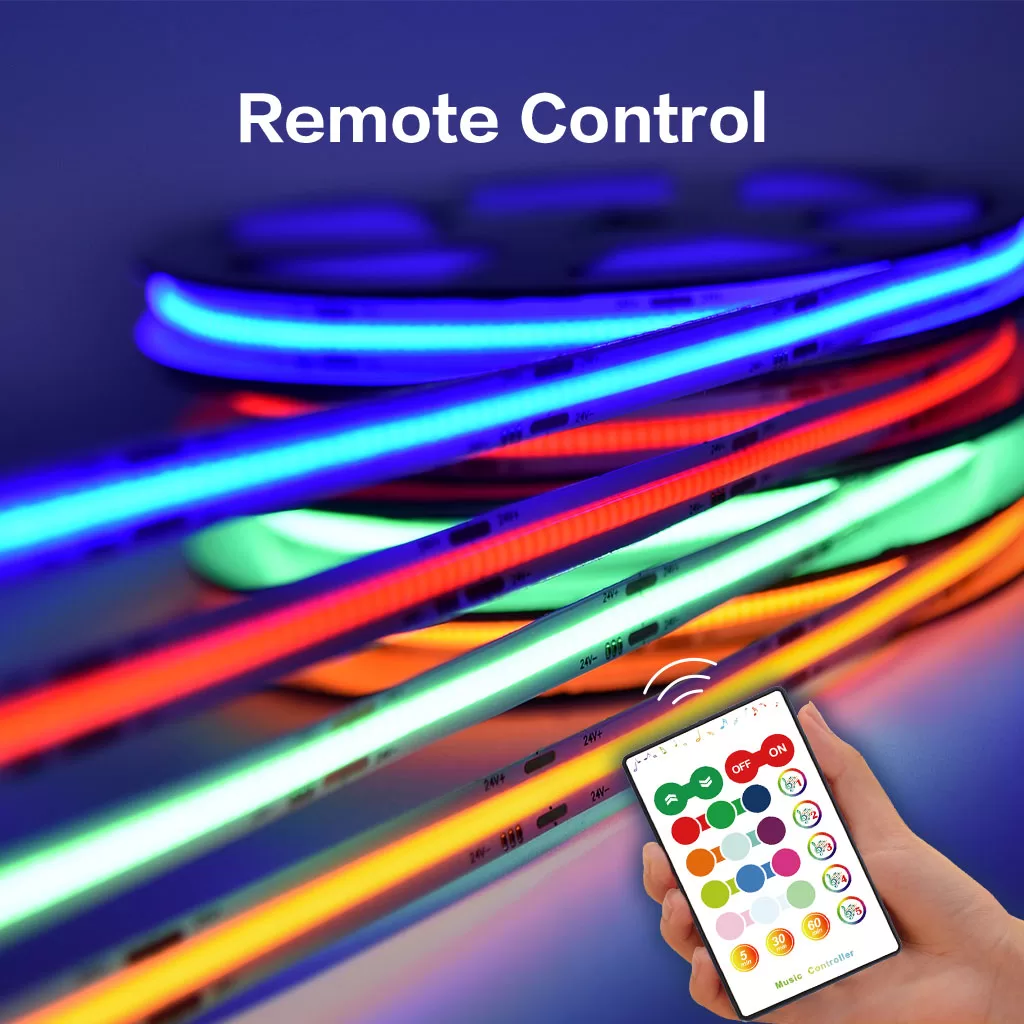

IR infrared 24-key remote control, the light strip can realize the effects of Running horse, gradient, jumping, chasing light, flowing water, and so on.
02.3

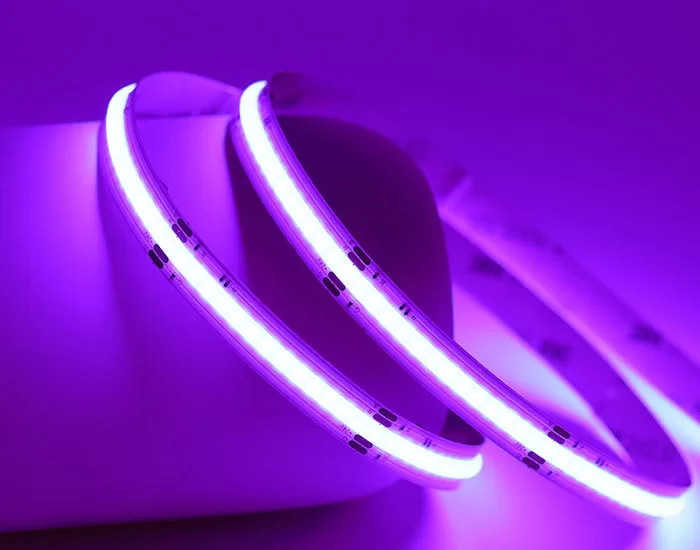

Uniform light colour — no light spots, no dark areas

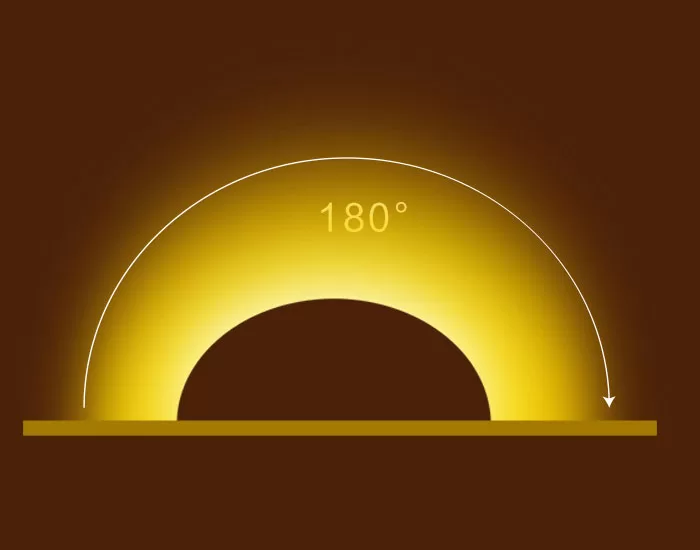

COB light-emitting angle can reach 180 degrees.
02.4

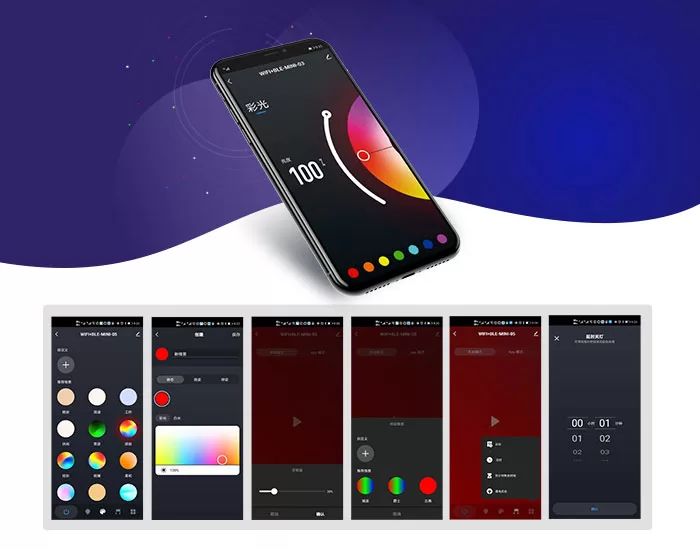

APP control — touch your fingertips, trigger more wonderful moments
Timer switch,brightness adjustment,color mixing adjustment, one-click scenario DIY scene,remote control by cell phone.03 — Applications

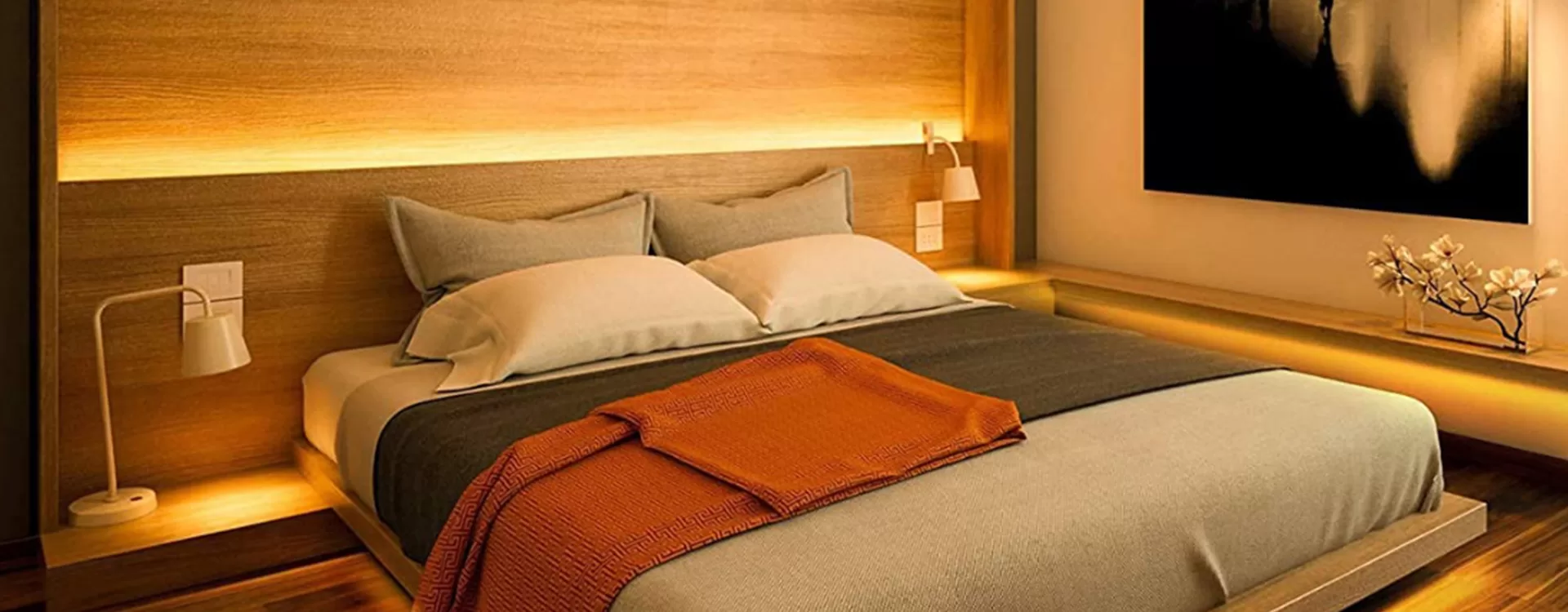

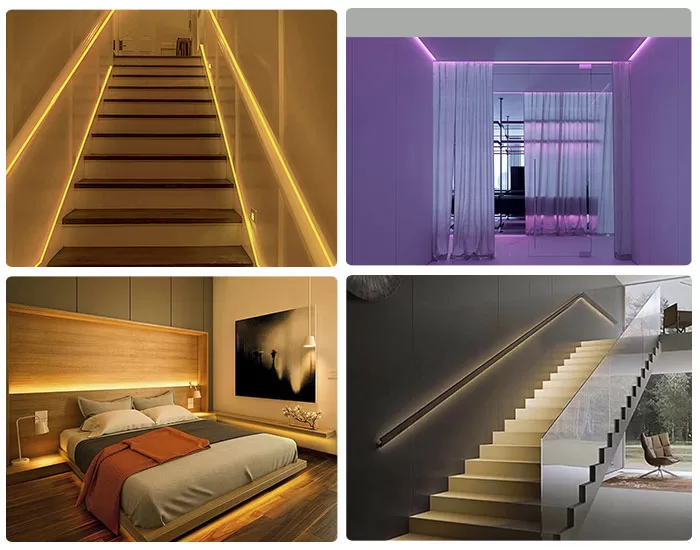

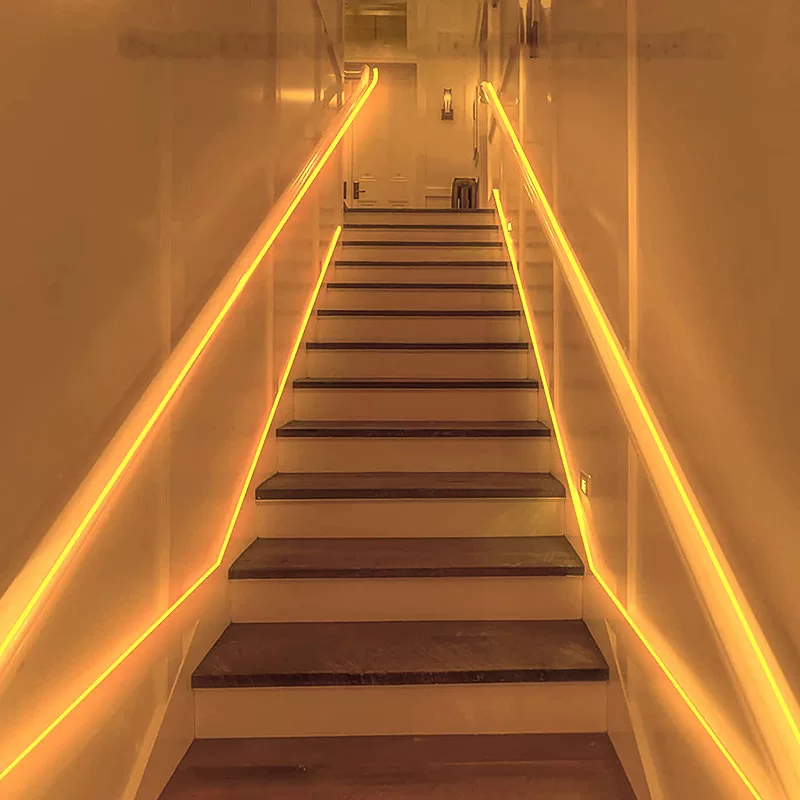

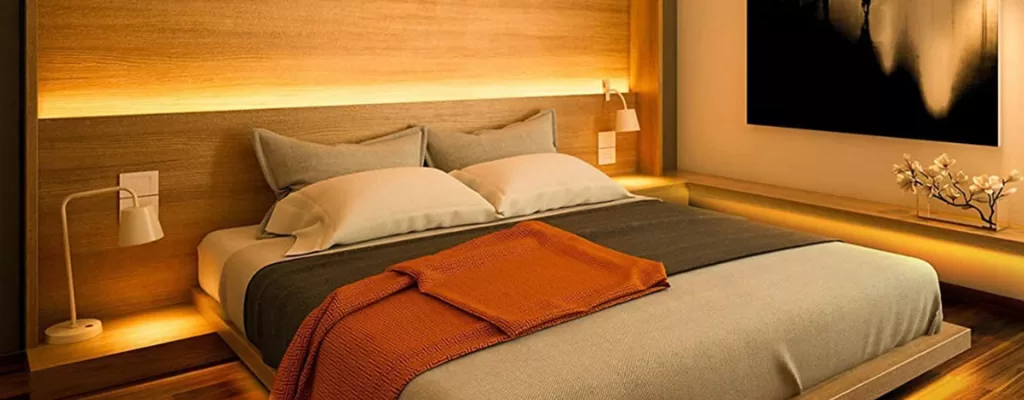

Where this model fits
The four applications this configuration is quoted for most often, each with the reason it suits the specification.
Retail display cases
Glass and acrylic cases show every light point; the dot-free COB line keeps merchandise unobstructed.
Home theatre & media rooms
180° beam gives even wall wash behind screens, and app scenes switch the room from viewing to ambient in one tap.
Hotel, restaurant & bar fit-outs
Group control covers multiple zones from one account, and the 50 mm cut interval matches bar and back-counter modules.
OEM lighting programmes
Length, IC, colour and packaging can be adjusted, so the same platform can carry your own brand and SKU set.
04 — Model range
The full series on one page
This platform is offered in several densities and run lengths. The differences that matter at selection stage are listed below.
| Model | LED density | Power | Run length | IC / control | Best for |
|---|---|---|---|---|---|
| COWPC6-33T5 | 420 LEDs/m | Max. 40 W | 5 m kit | Tuya Wi-Fi + BLE, IR | Display cases, media rooms |
| COWPC6-33T10 | 420 LEDs/m | Max. 80 W | 10 m kit | Tuya Wi-Fi + BLE, IR | Longer coves and perimeters |
| COWPC6-48T5 | 480 LEDs/m | Max. 45 W | 5 m kit | Tuya Wi-Fi + BLE, IR | Shorter viewing distances |
| COWPC6-33T5-RGBW | 420 LEDs/m | Max. 48 W | 5 m kit | Tuya Wi-Fi + BLE, IR | Projects needing a white channel |
More in the LED Strip Kits
- Outdoor Permanent Light — 24 V RF433, Dream Color
- RGBIC + CCT LED Strip Kit (dual IC)
- Festoon Lighting Kit — WiFi+RF, RGBIC+W, 15 m
- Dream Color String Downlight — 12 V WiFi+IR
- Permanent Outdoor String Lights Kit — WiFi+RF433, 15 m
- Outdoor String Bulb Light — WiFi+BLE+RF433, RGBIC+W
- Neon Light Kit — WiFi+BT+IR, RGBIC, IP67
- PVC Neon Light Kit — WiFi+BLE+IR, IP67
- 5 V Bluetooth Strip Kit — IR remote, 5–20 m
- RGBIC Illusion Strip Kit — WiFi+BLE+IR, Music
- Music LED Strip Light Set — WiFi+BLE+IR, 5 m
- USB Bluetooth Music Strip Kit — 5 V, 2 m
Not sure which model to quote?
Send the run length, mounting surface and target viewing distance — we will narrow the series to one or two options and confirm the cut points for your layout.
Send your layout
05 — Compatibility & contents
What arrives in the box, and what is added on site
Split into supplied items and separately available accessories, so procurement can price the complete installation in one round.

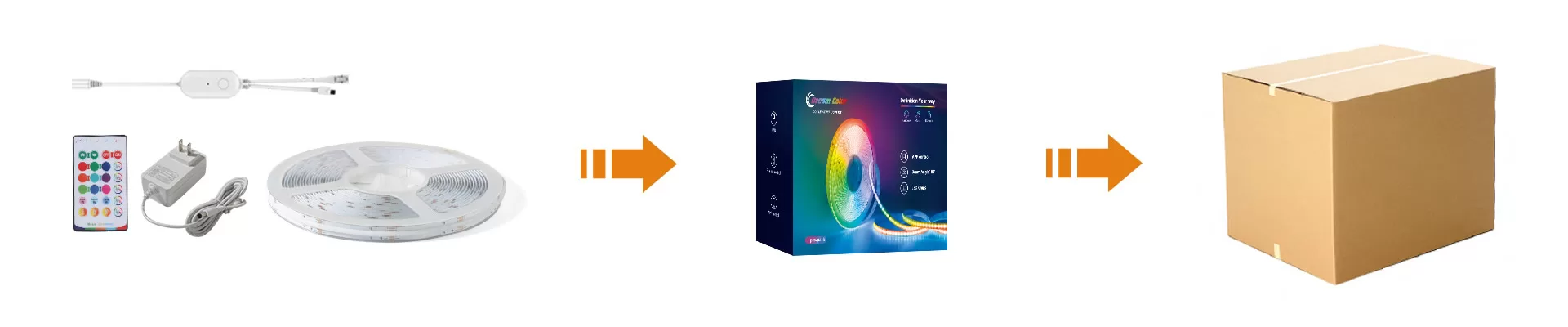

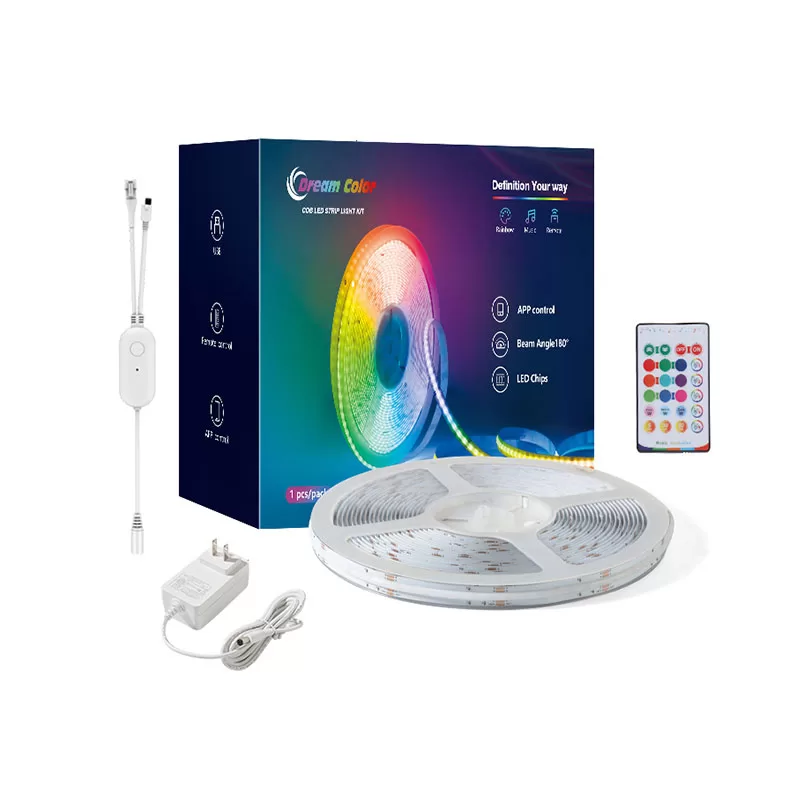

Included Supplied with the kit
- COB RGB strip — 5 m, 420 LEDs/m, pre-wired at one end
- Smart controller — Tuya Wi-Fi + BLE
- 24 V power supply — rated to the kit load
- IR remote — 24-key, battery included
- Mounting clips — adhesive-backed, pack quantity with strip length
- User manual — EN, with app pairing steps
Sets ship individually boxed and carton-packed for export, so no repacking is needed before retail distribution — one handling step less, and less transit damage.
Separately Ordered as accessories
- Aluminium profile with diffuser — recommended for exposed coves and heat dissipation
- Additional power supplies — for runs beyond one driver
- Connectors and extension cables — for re-joined cuts and corner transitions
- Alternative controllers — RF433, Zigbee or DMX512 integrations
Compatible ecosystems: Tuya / Smart Life app, Amazon Alexa, Google Assistant, Xiaodu, Tmall Genie.
06 — OEM & ODM
What can be customised
We build this platform under customer brands. The table lists the adjustable items; order size and lead time are the same across the list.
| Customisable item | Available options |
|---|---|
| Run length | 1 m, 5 m, 10 m or custom reel length |
| LED density | 420 / 480 / 528 LEDs per metre |
| IC & protocol | Tuya Wi-Fi + BLE, RF433, Zigbee, DMX512 |
| Colour configuration | RGB, RGB + CCT, single colour |
| Packaging | Colour box, blister, poly bag, printed manual, barcode and carton marks |
| Branding | Logo print on box, sticker, silkscreen on strip, app white-label |
| Certification | CE / RoHS standard; UL, ETL, DLC, FCC, ENERGY STAR on request |
Run length, density, colour and IC changes start at 500 sets with a 20–25 day lead time (IC changes 25–30 days). Packaging and branding start at 1,000 pcs, adding 7 days for artwork. Certification scope is quoted per project .
Certification
CERoHSREACH
UL / ETL / FCC — selected models
DLC / ENERGY STAR — on request
Certificate numbers are published on our certification page. Ask us for the test report for your target market and we will send the matching file.
Warranty
3 years standard on strip and controller; 5-year extended option for project and tender orders .
Covers defect replacement of strip, controller and driver. Excludes damage from incorrect voltage, cutting outside the marks, or outdoor use of an IP20 product.
08 — Ordering & delivery
Order size, lead time and packing data
Enough detail to assess whether an order is workable before contacting us, including the carton and weight figures used for freight quotes.
| MOQ — stock configuration | 500 sets |
| MOQ — OEM configuration | 1,000 pcs |
| Sample lead time | 5–7 days |
| Production lead time | 20–25 days after deposit and artwork approval |
Company-wide terms (identical for every SKU): monthly capacity 200,000 m of strip · EXW / FOB Shenzhen / CIF on request · 30% deposit, balance against B/L copy .
Need samples before committing to a volume order?
Send your application and target quantity — sample kits ship in 5–7 days .
Request samples
09 — Downloads
Engineering documents
The files an engineering or procurement team normally requests before specifying this model.
- PDF Product datasheet Full specification, photometric and electrical data — COWPC6-33T5 Download
- PDF / DWG Dimension drawing Strip section, cut-mark positions and mounting footprint Not uploaded
- PDF Packaging specification Box artwork dimensions, carton marks and pallet loading Not uploaded
- PDF Company catalogue Full CL Lighting product range Download
Installation and app manuals for the full range are in the download library.
10 — FAQ
Engineering questions we answer most often
Written for specifiers rather than consumers: run length, power, cutting and ingress protection.
What is the maximum run length on a single power feed?
A 24 V constant-voltage strip is limited by voltage drop rather than by the LEDs. Keep one feed under 10 m and supply longer installations from both ends or from separate drivers. Send us the run length and we will confirm the driver rating and the number of feeds on the drawing .
Does the kit need an external power supply, and is it included?
The strip runs on DC 24 V, so a supply is always required. Kits are quoted with the matching driver for the run length; for project orders we can ship without one if you prefer to source your own .
Can the strip be cut, and re-joined after cutting?
Yes — cut marks sit every 50 mm. Sections can be re-joined with solder joints or clip connectors, but each section needs its own power feed once the copper trace is broken.
Is this strip suitable for outdoor, bathroom or wet areas?
This model is IP20 for indoor, dry locations. For bathrooms, outdoor facades or other wet areas we quote an IP65 or IP67 version of the same platform — send the application and ingress requirement and we will match a model.
